StatiCAD-Masonry V4

Analysis and Design Of Masonry Buildings

Click to Download Demo Version

Analysis

Design

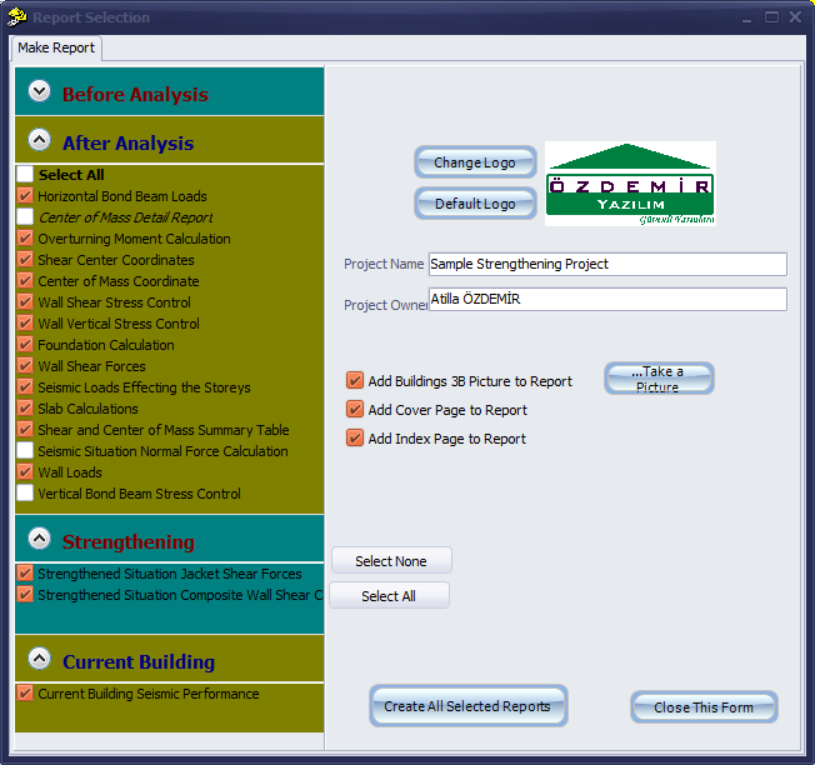

Reporting

Drawing of Masonry Buildings

According To European codes

New Design

Performance

Strengthening

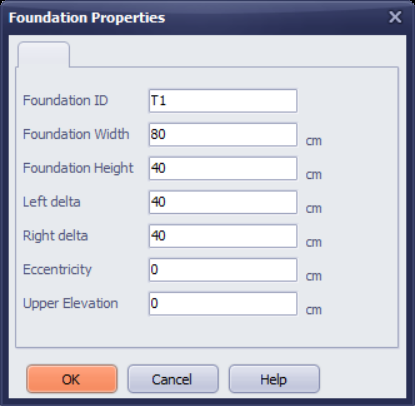

Full Graphic User Interface for modelling

Import Model from dwg/dxf 2D drawings

Rich analysis options can solve system among to your engineering intelligence

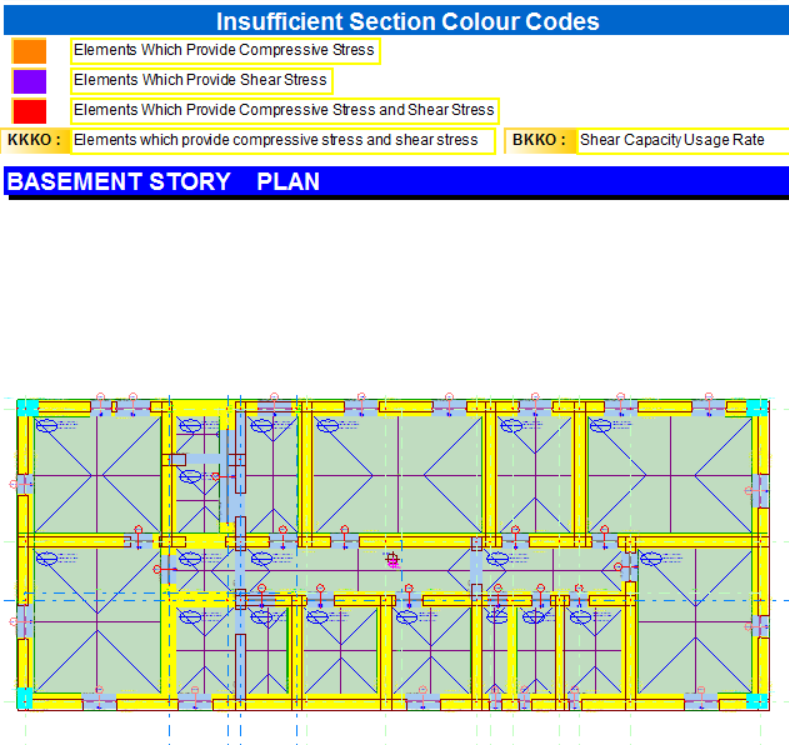

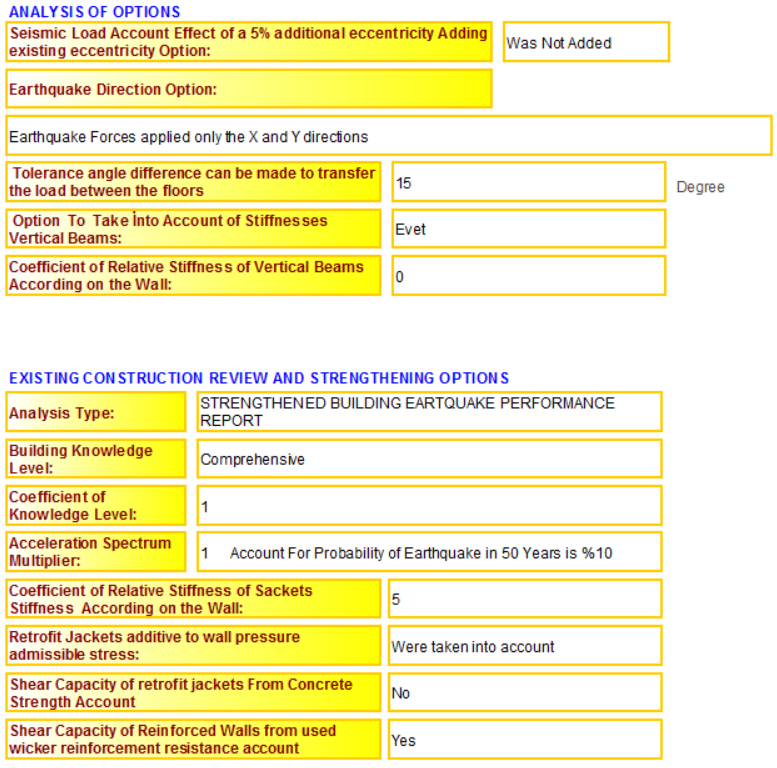

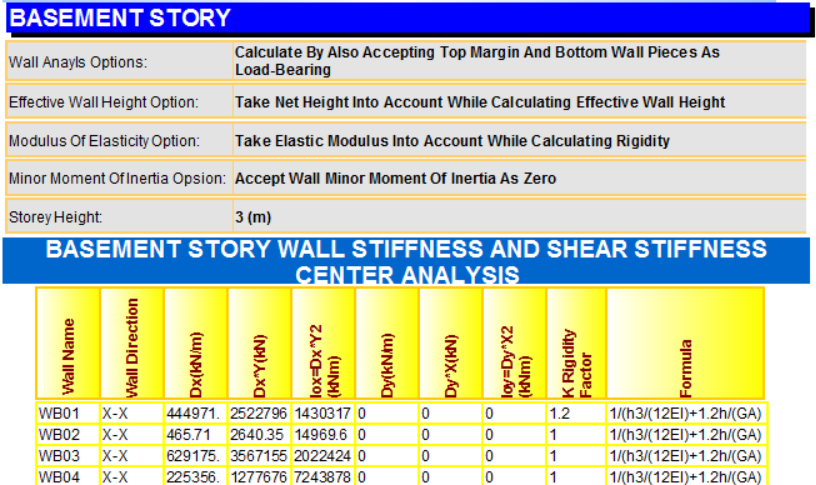

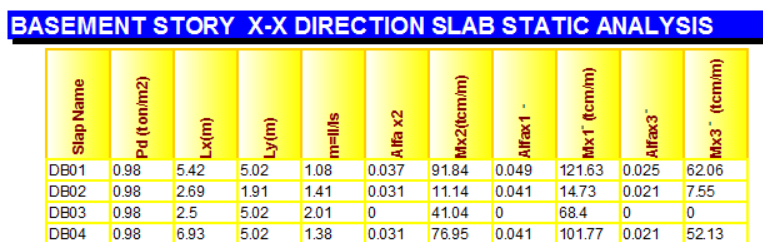

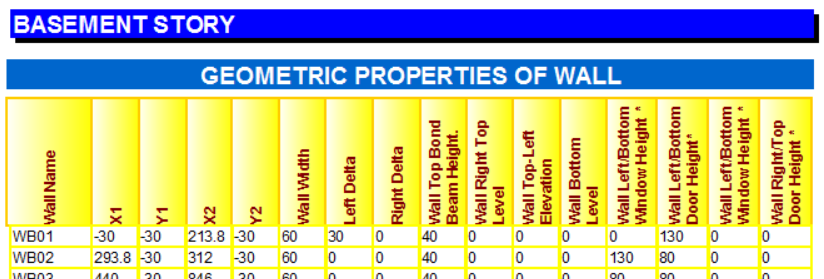

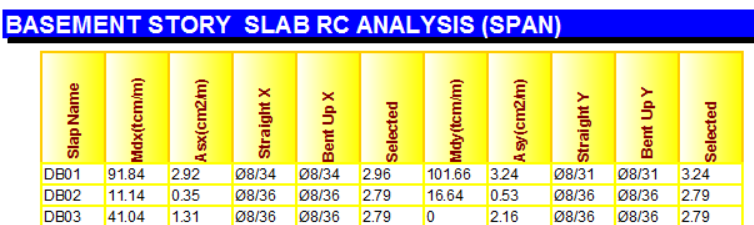

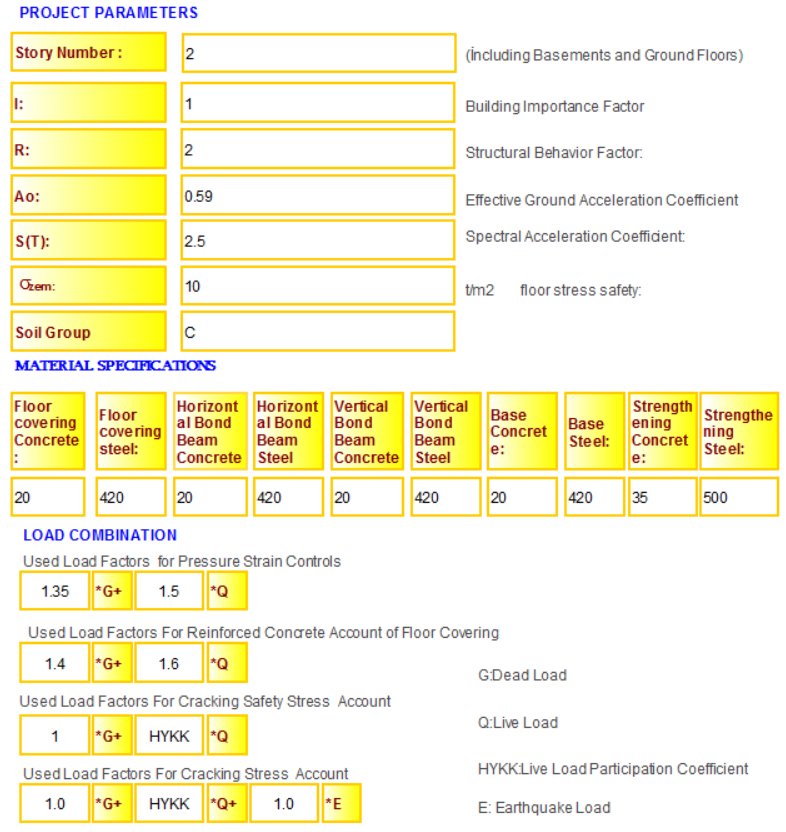

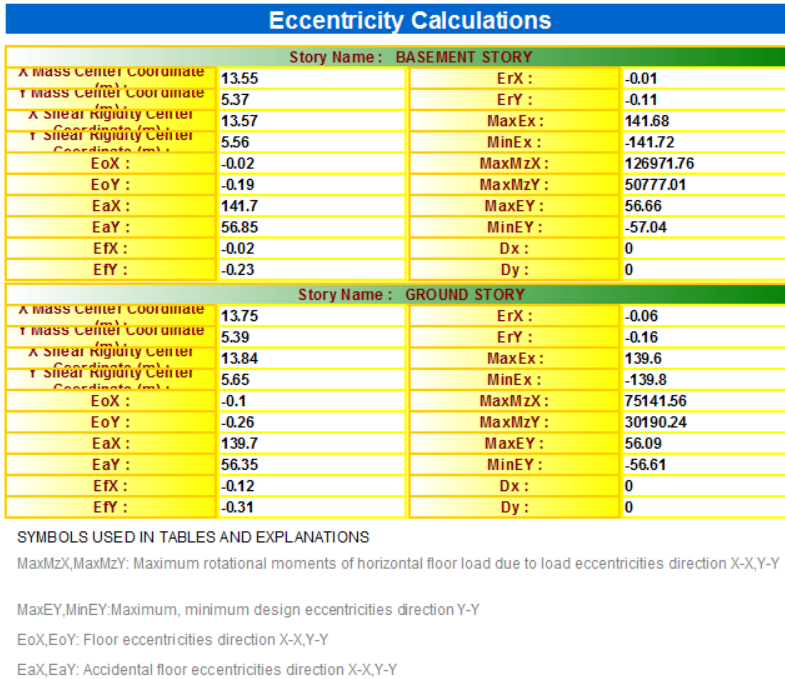

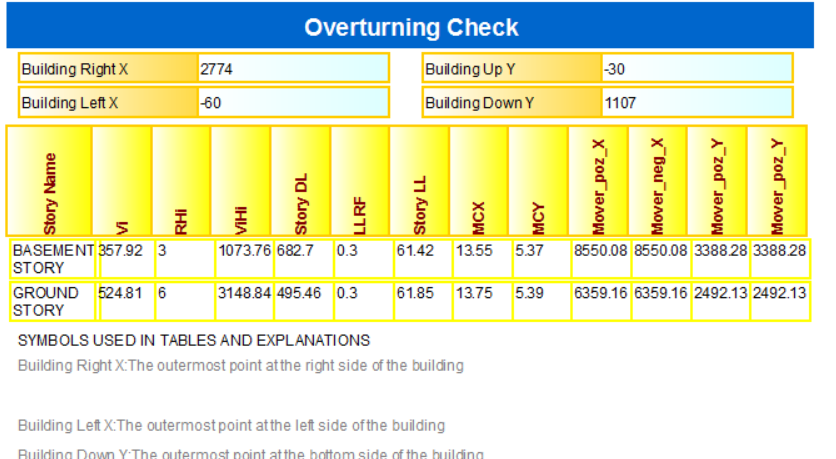

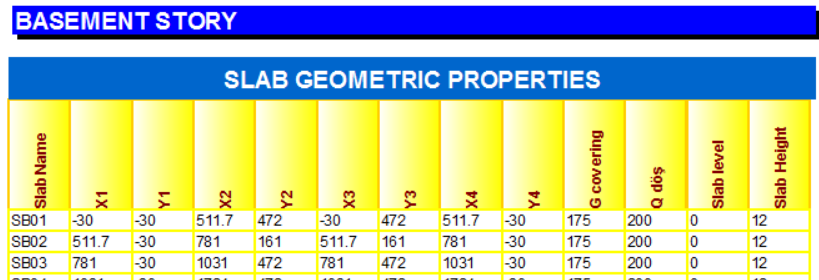

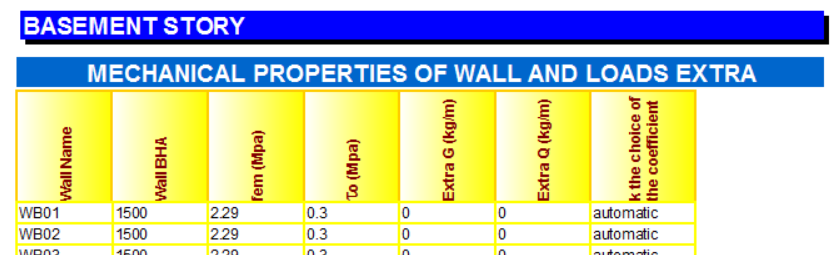

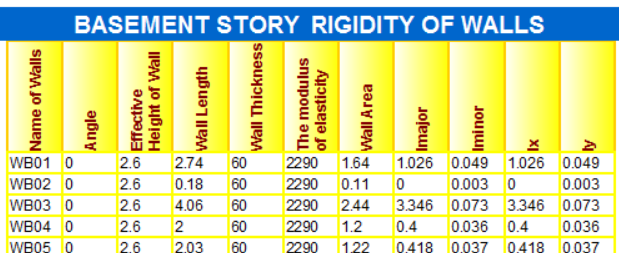

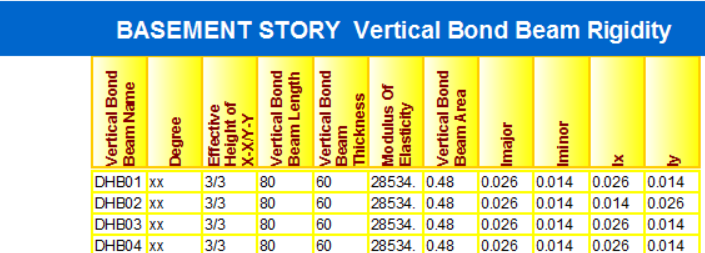

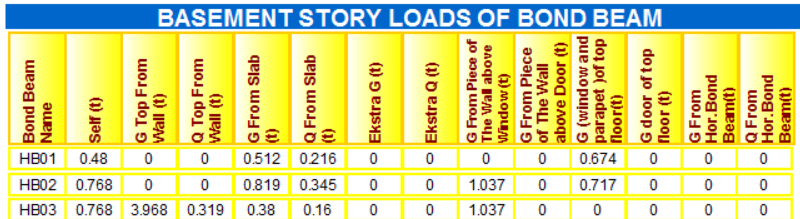

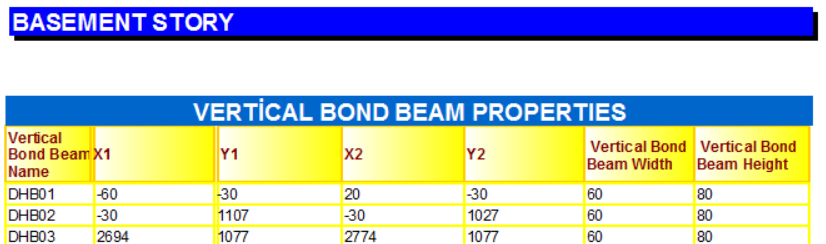

Colorful analysis reports can be converted to pdf

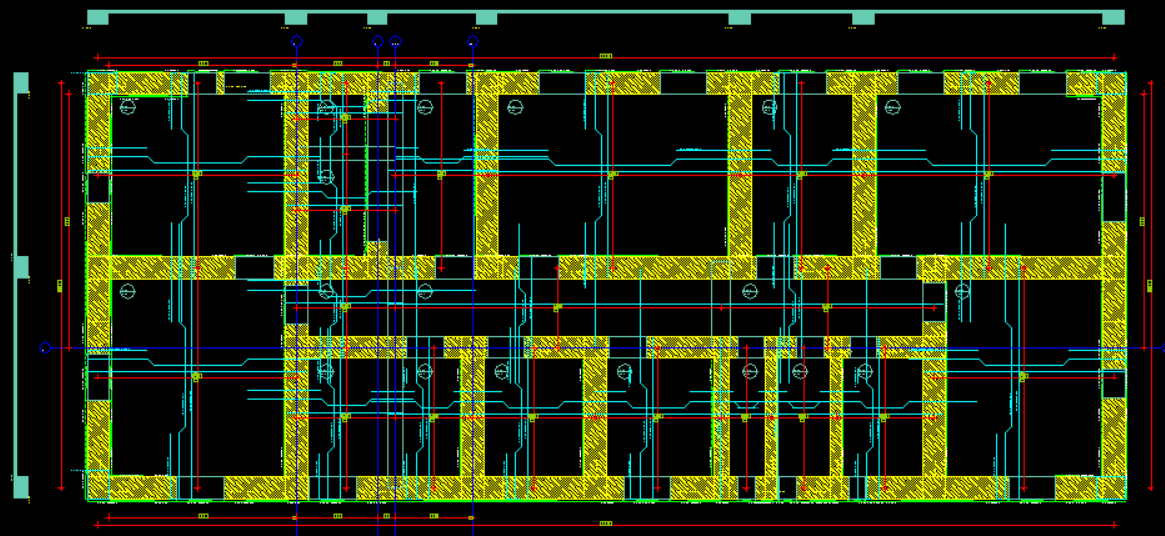

Full drawings of buildings can be exported to dwg/dxf

&

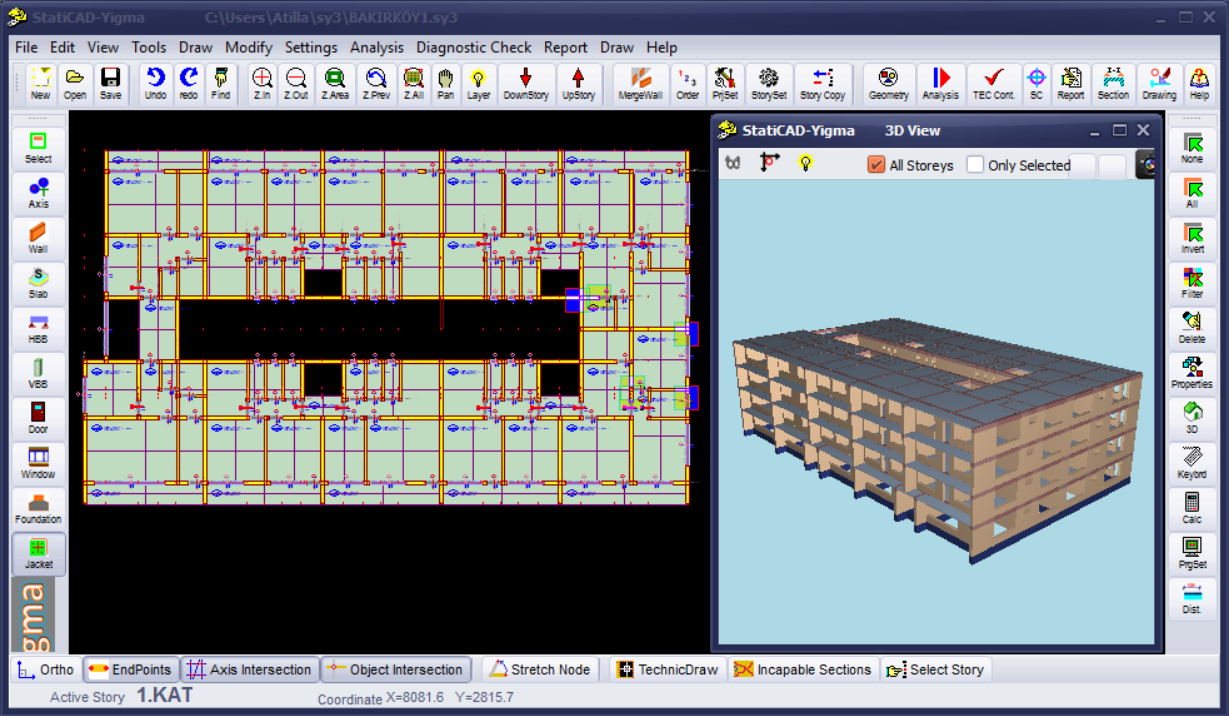

RAPID MODELLING with full graphic user interface

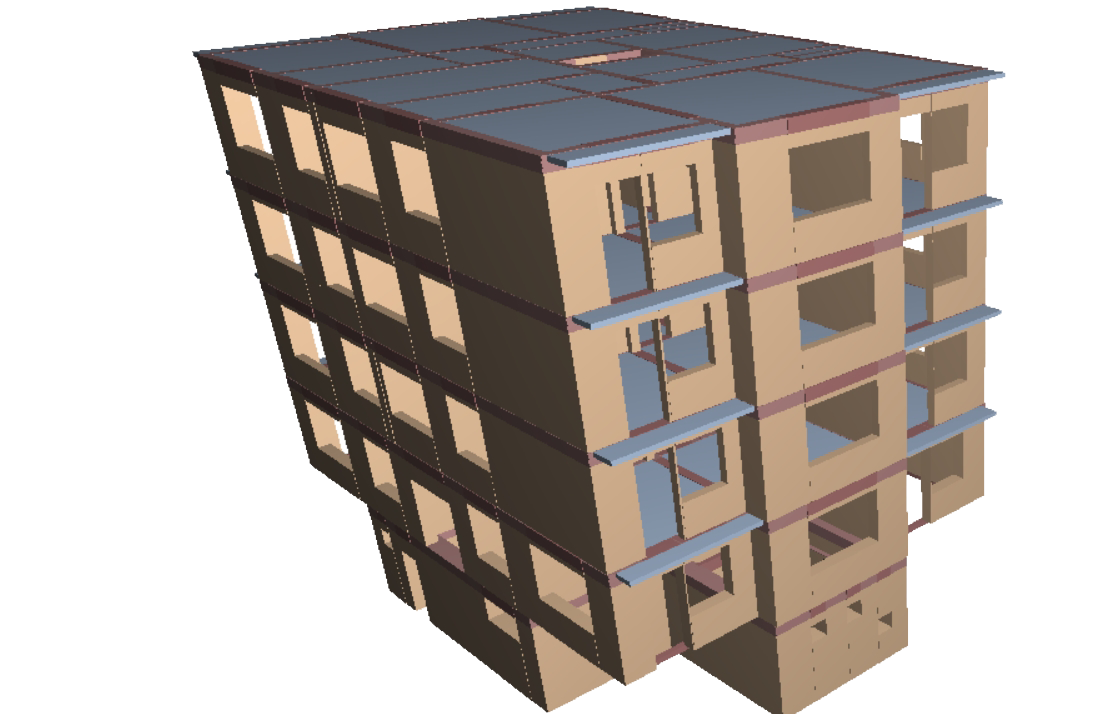

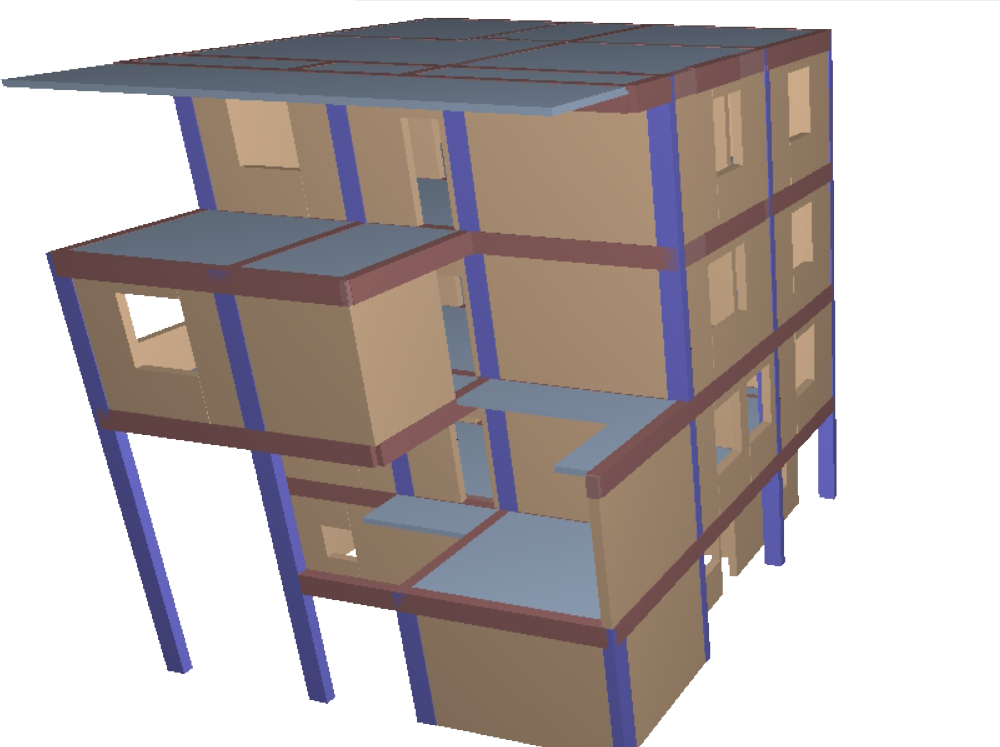

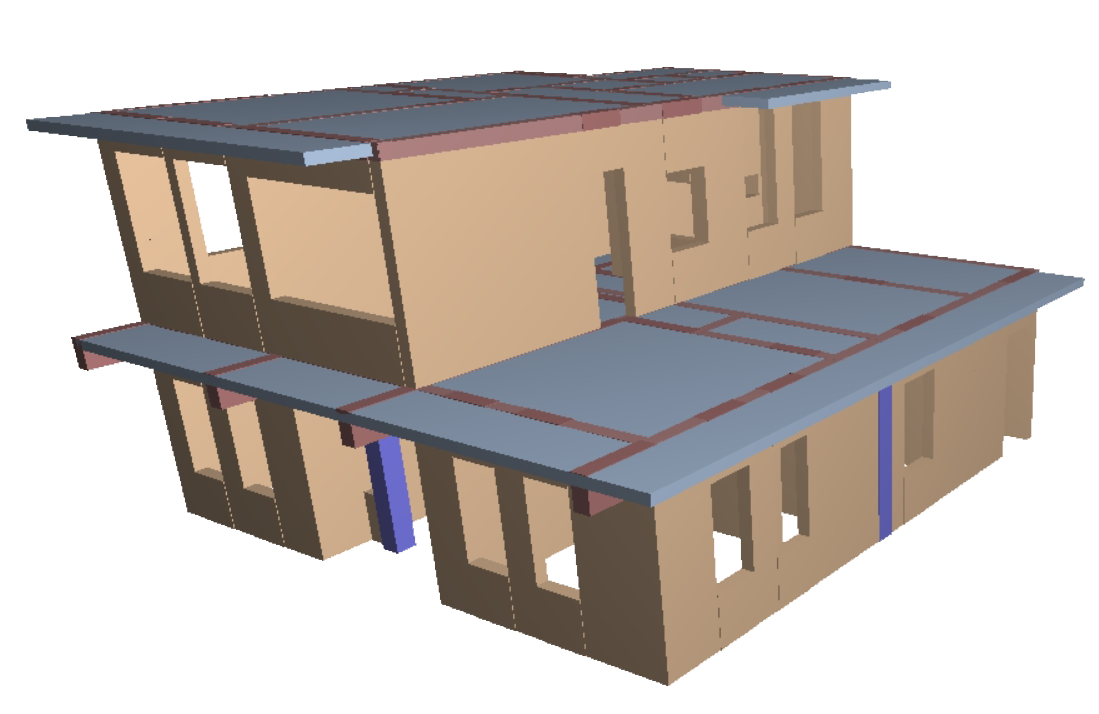

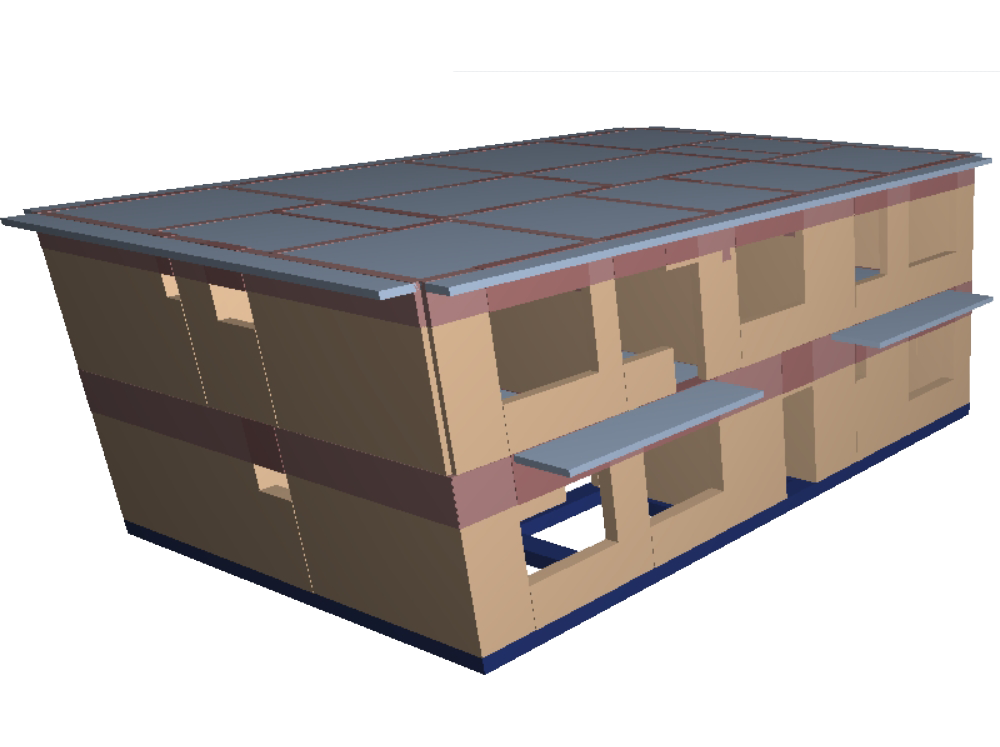

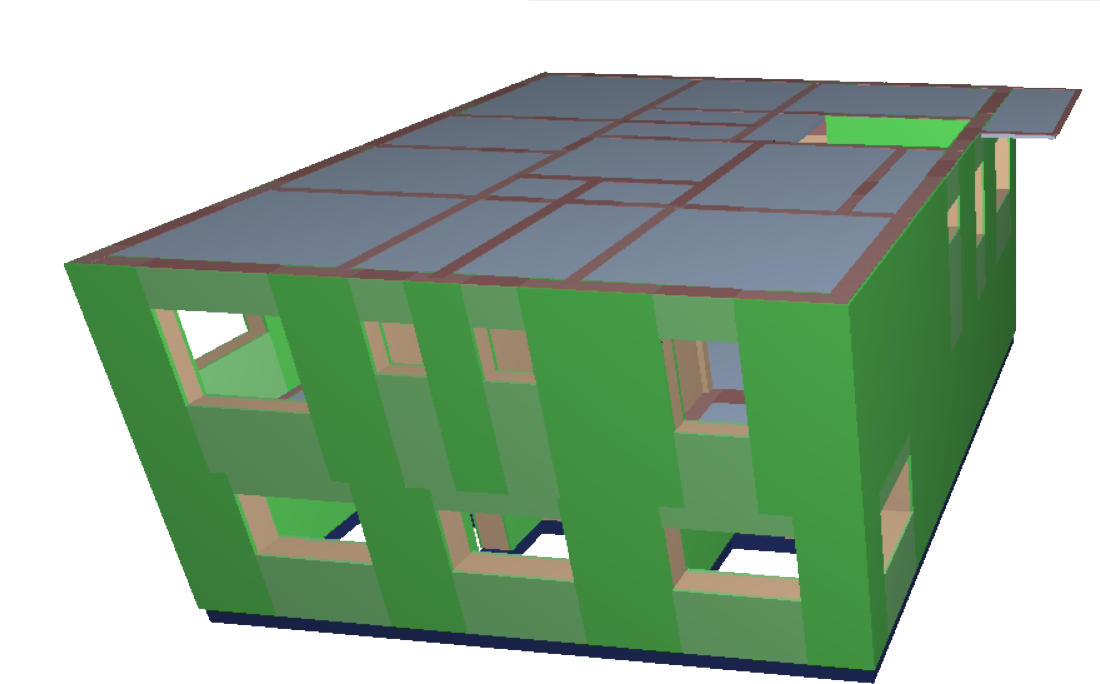

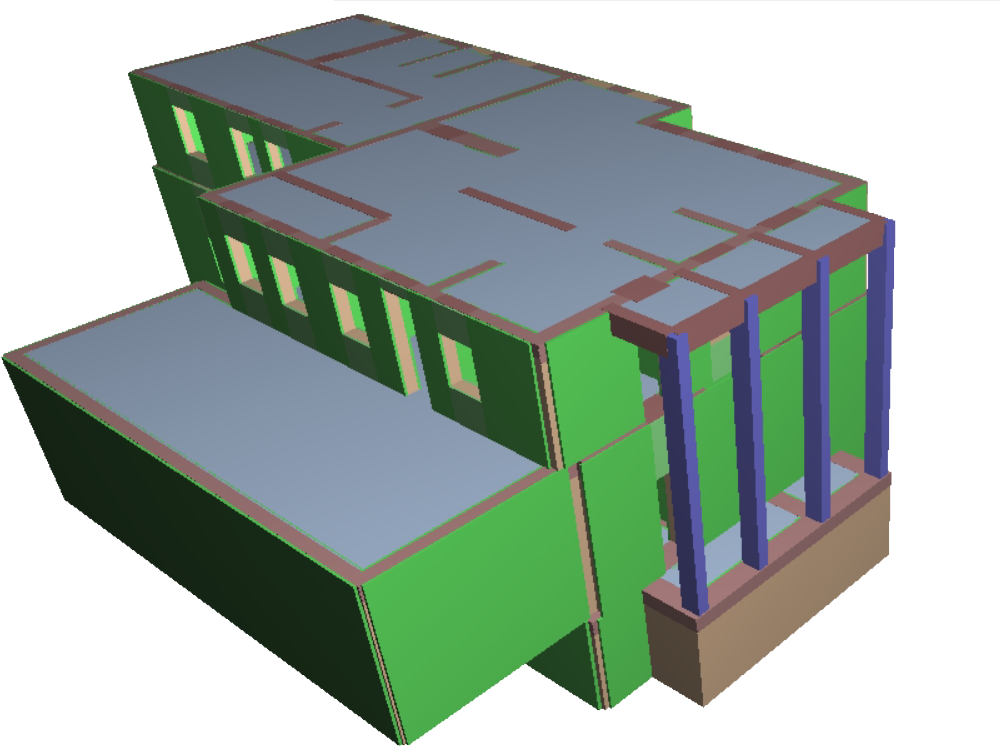

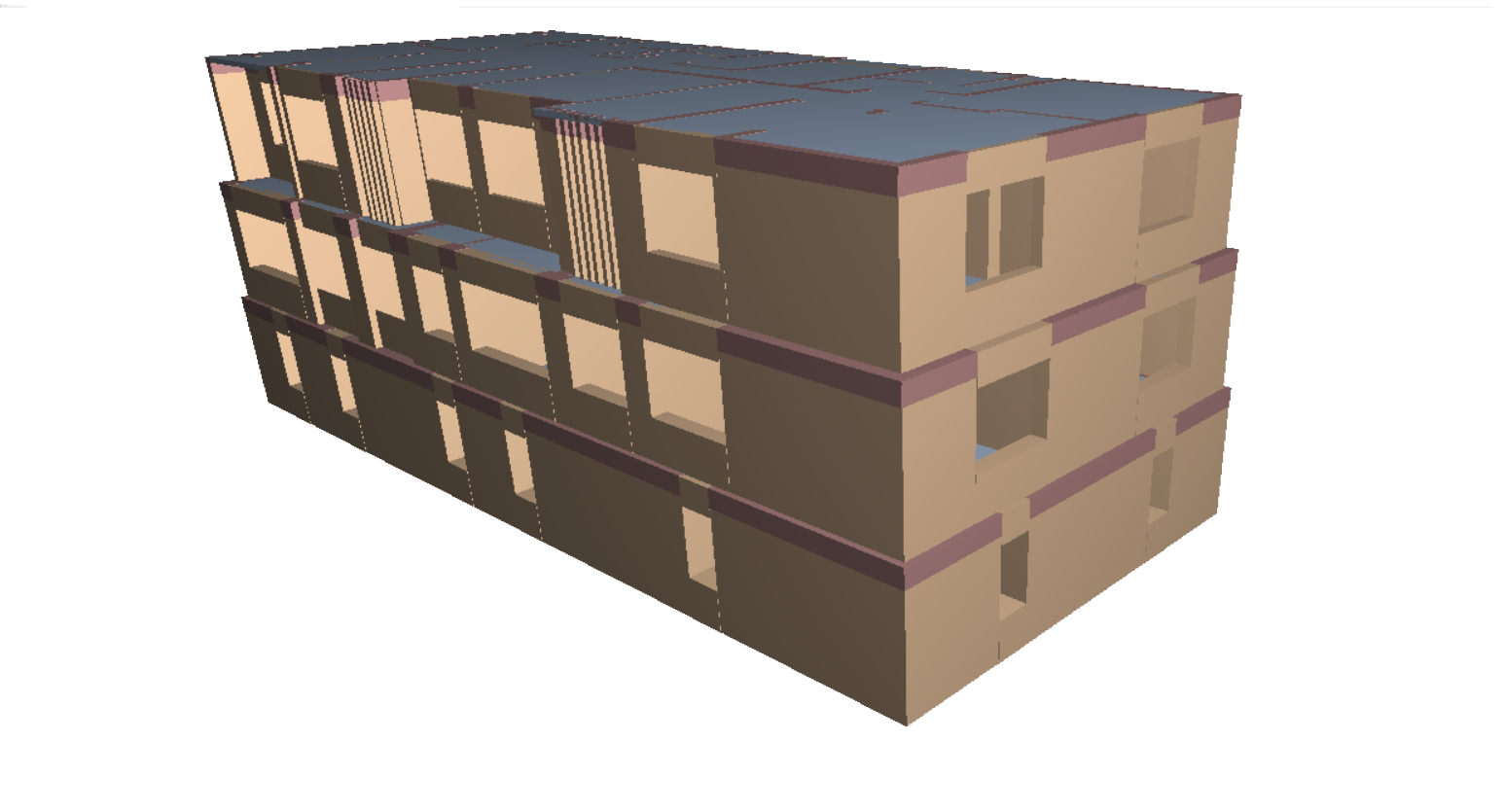

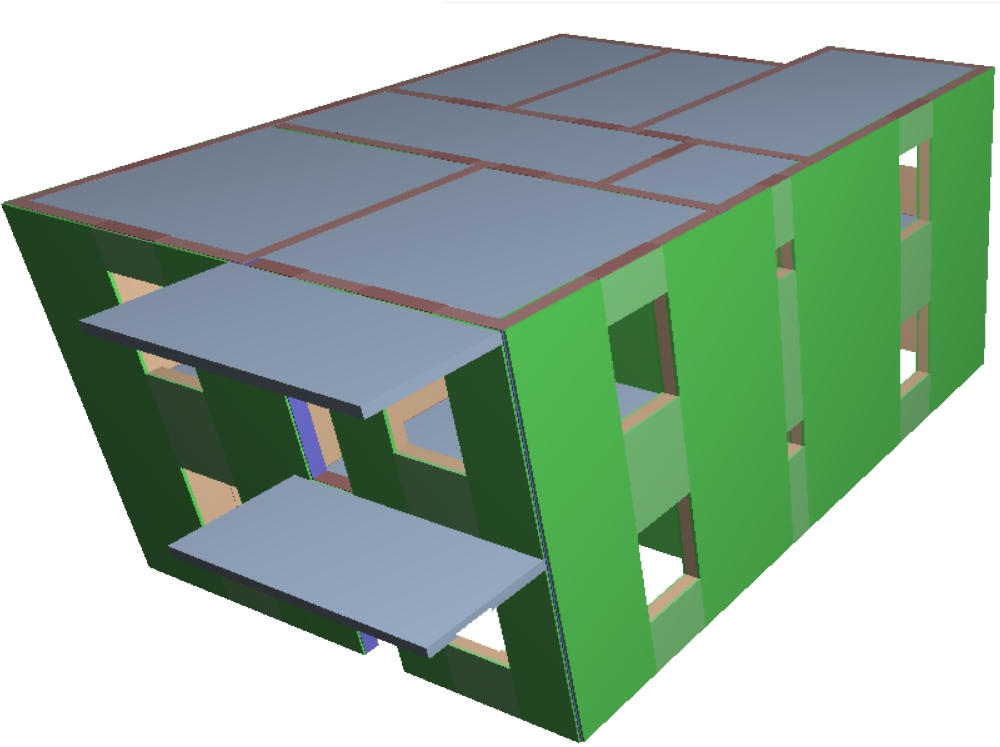

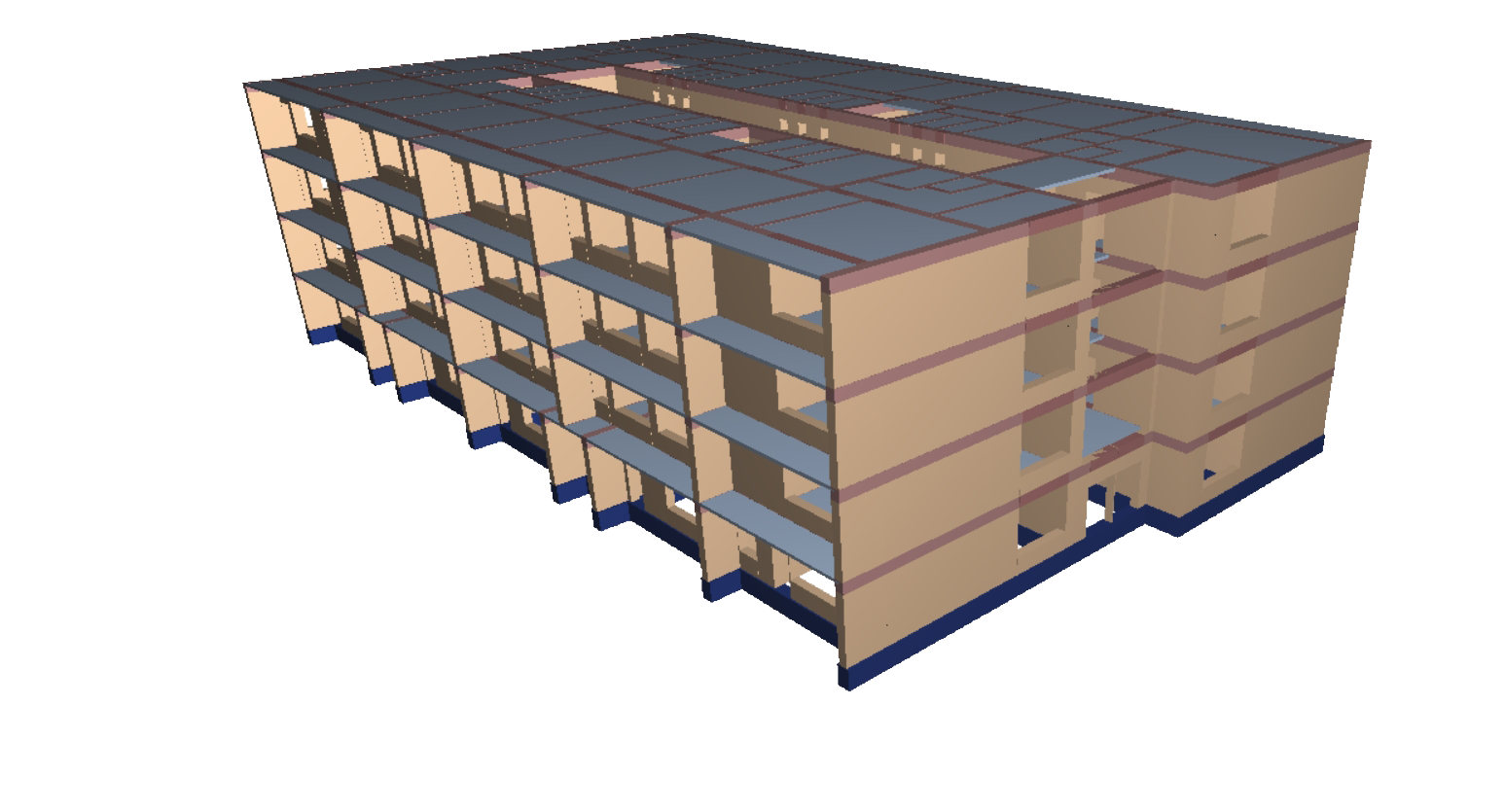

3D View of modelled objects

Real time, zoomin- zoomout-pan

Automatically Merge walls with one click

Select and filter multi objects by types.

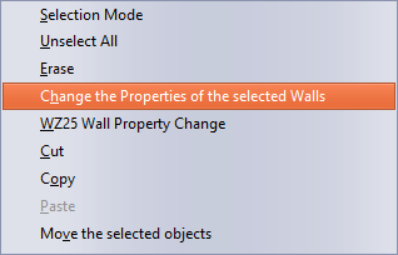

Changing properties of selected objects with right click of Mouse.

And much more…

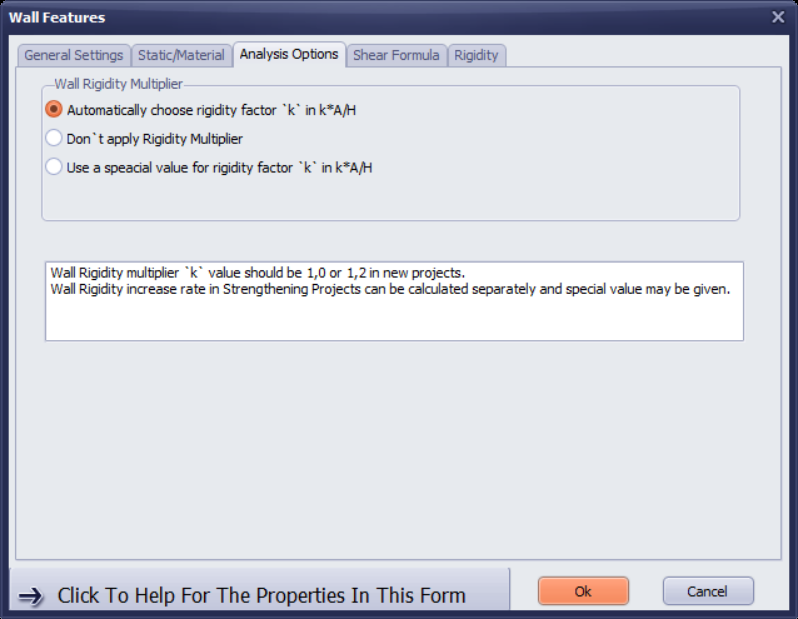

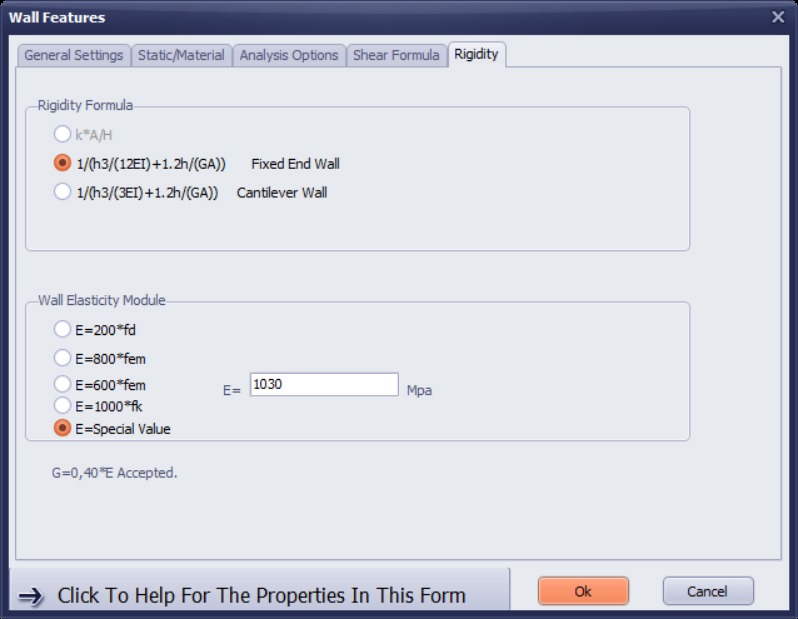

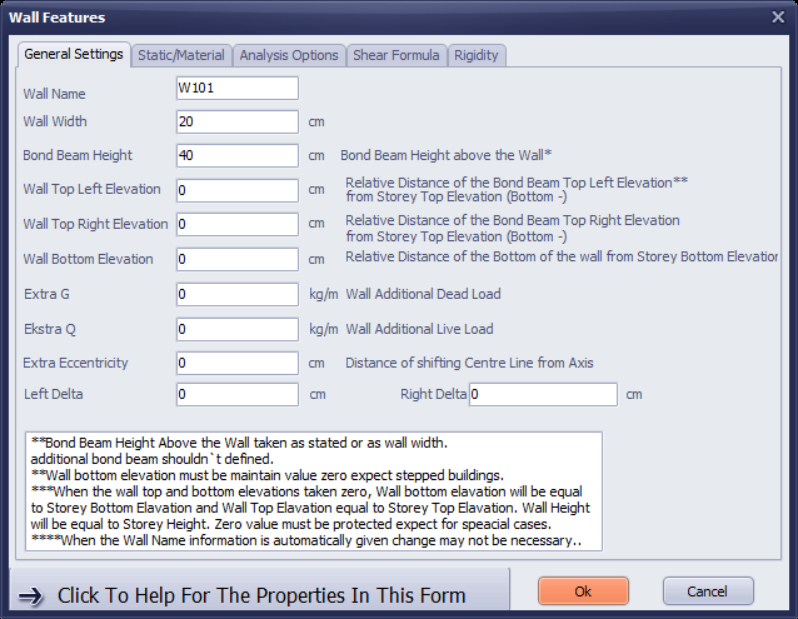

All modelling paramaters for Wall’s design calculation can be defined

Different Wall elevation (bottom, top left, top right) can be defined

Extra Dead and Live Loads to walls can be defined

Laboratory test result of walls can be defined manually

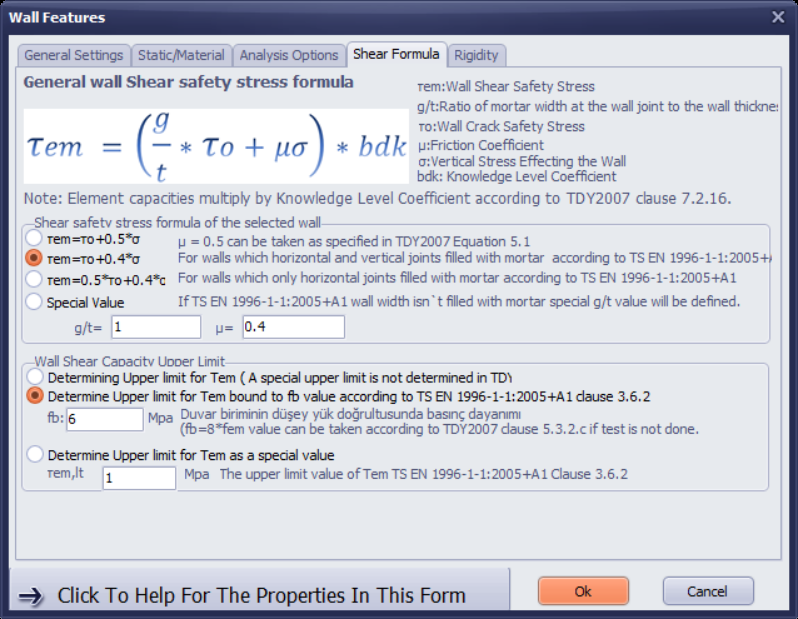

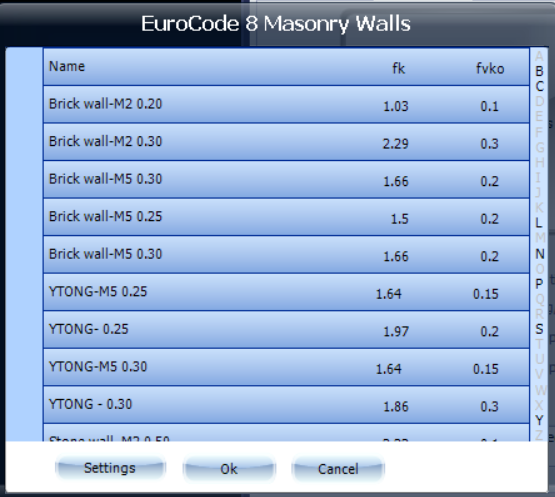

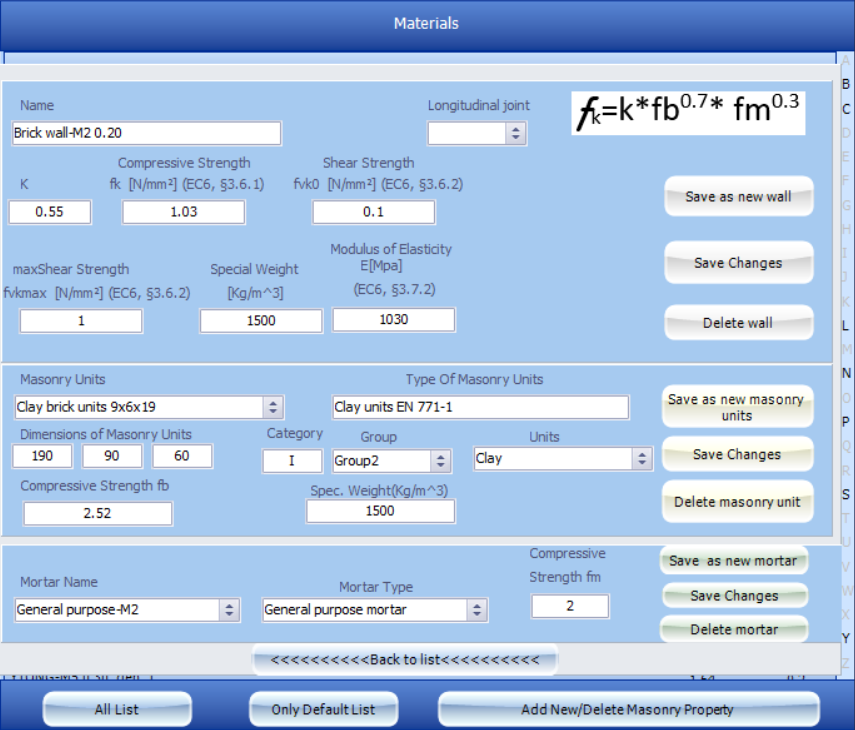

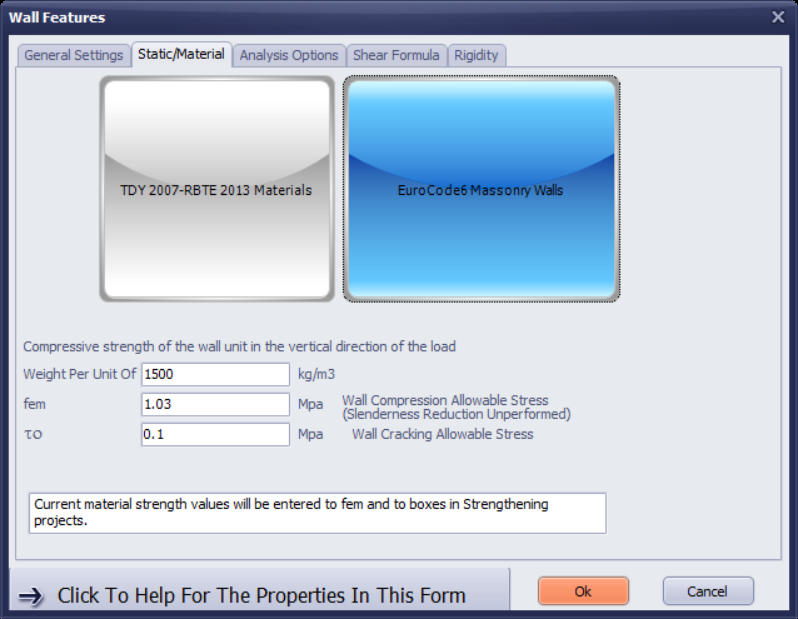

Wall design paramaters can be calculated from mortar and unit type according to Eurocode6

Thousands of masonry buildings analysed with StatiCAD-Masonry.

By Over                                    companies.

800 registered

Rapid-Reliable-Detailed Modelling Of Masonry Structures

For Safer Future.

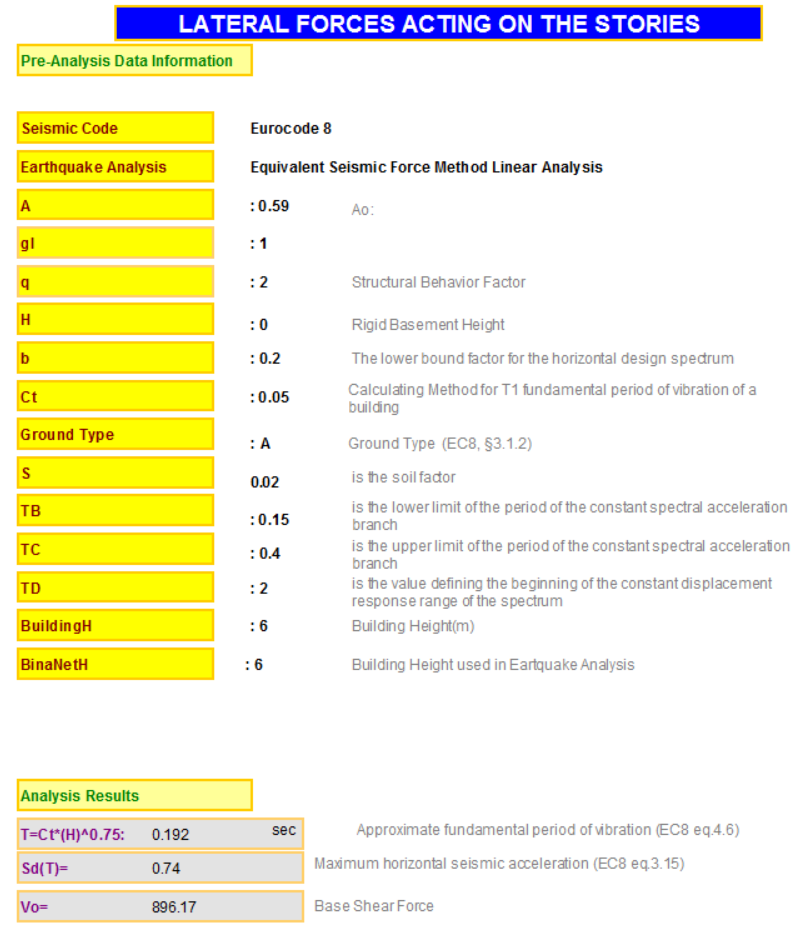

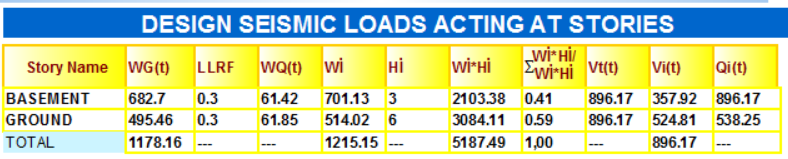

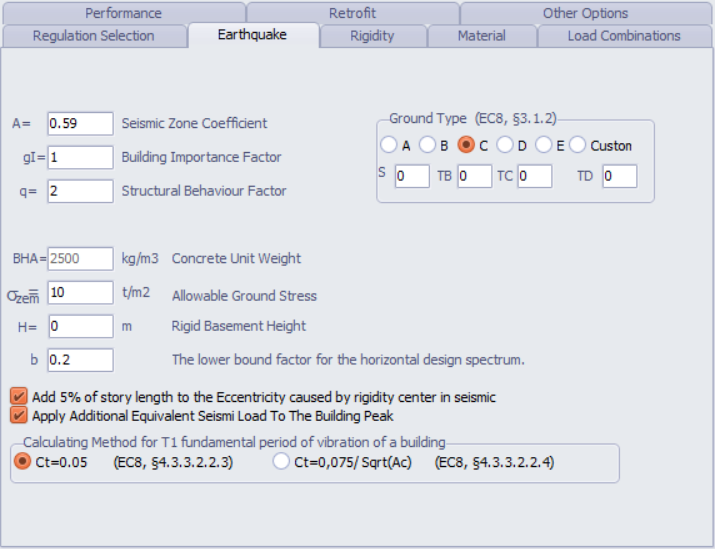

Automatic Calculation of the Earthquake Forces According to Eurocode8

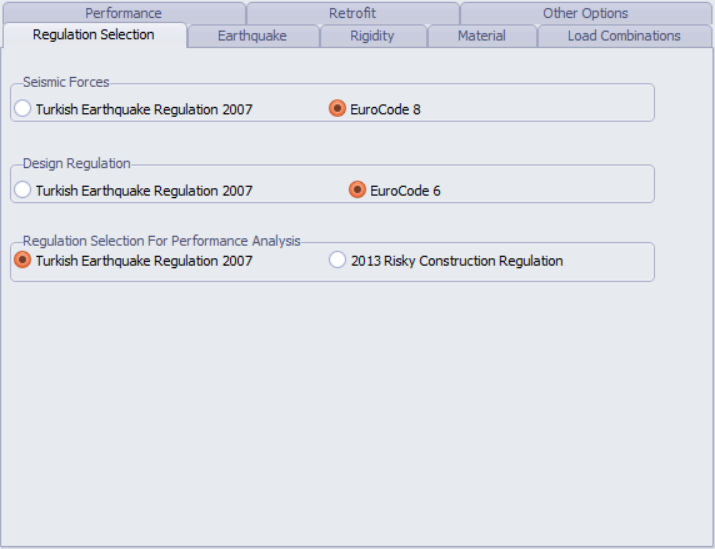

Automatic Design of the Masonry Buildings According to Eurocode6

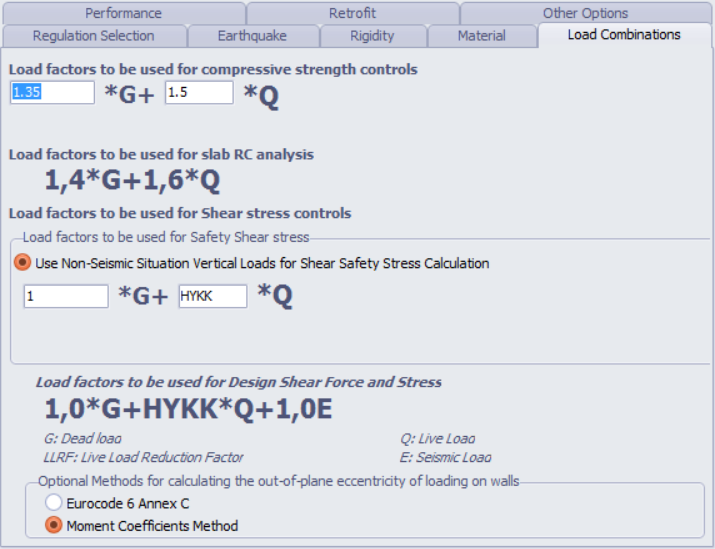

Custom load combinations for vertical and lateral strength

Optional Methods for calculating the out-of-plane eccentricity of loading on walls

Eurocode6 Annex C Method

Moment Coefficients Method

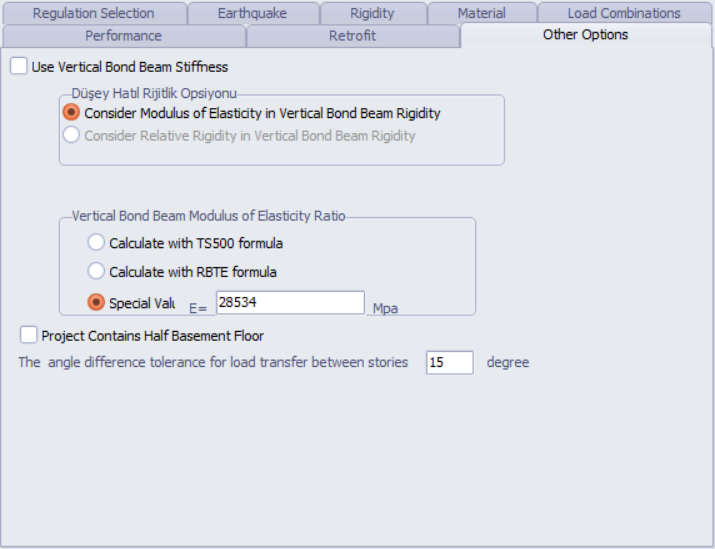

Optional Method for using Vertical Bond Beam Stiffness

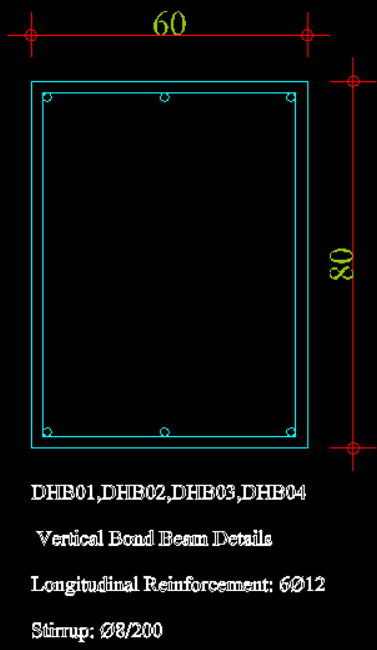

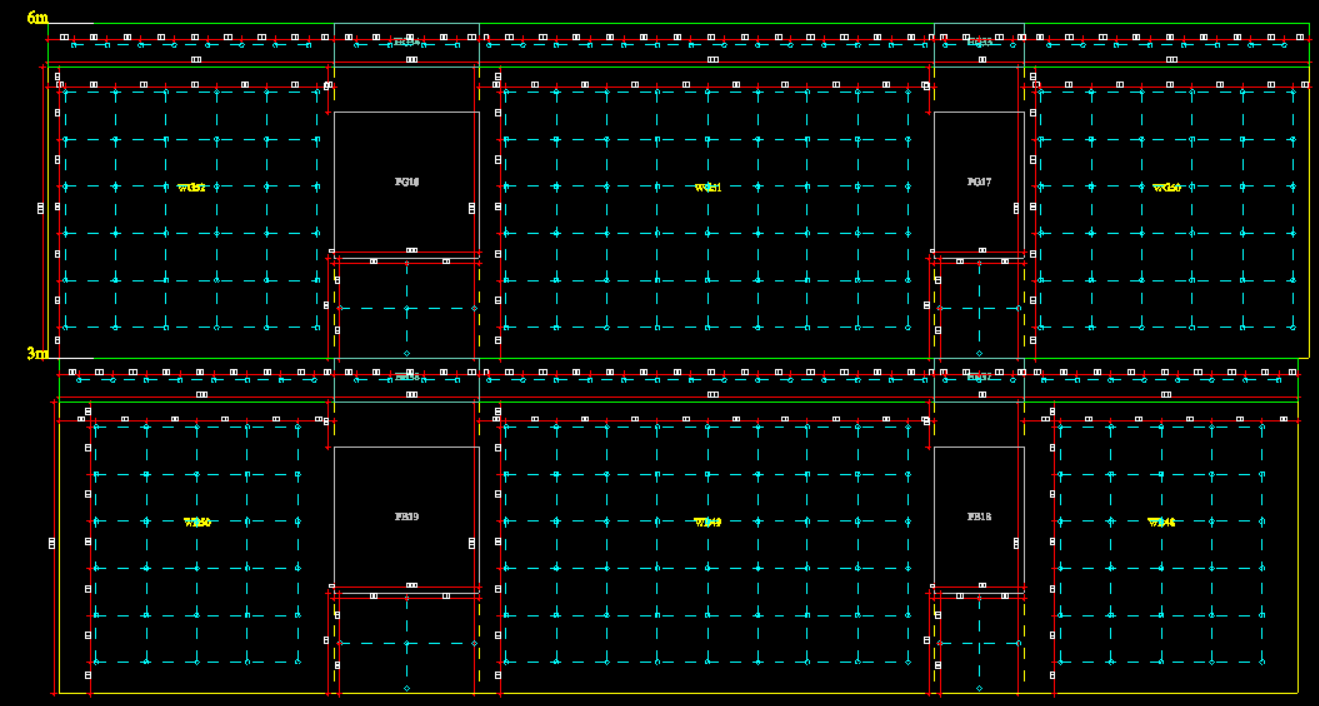

Auto Generated Drawings;

Foundation Application Plan

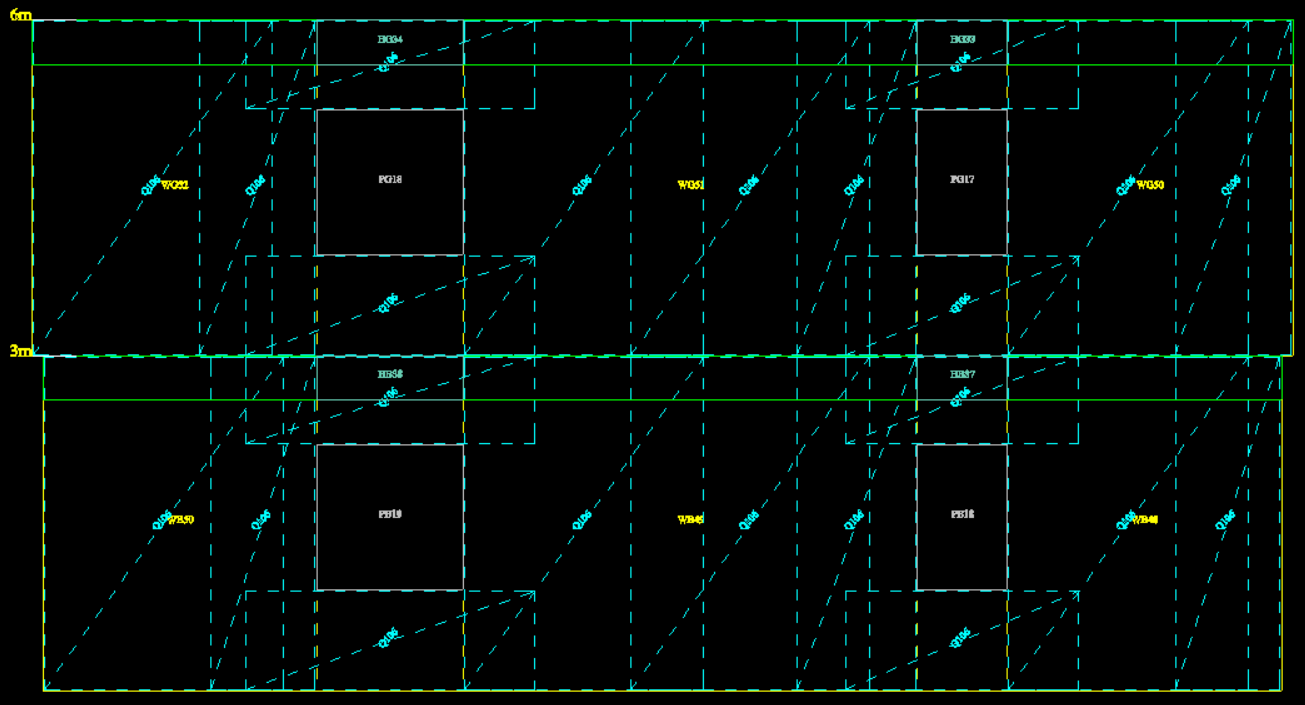

Wall Plan, Formwork Plan

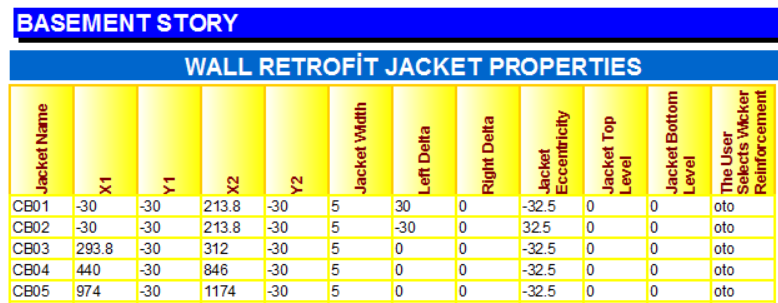

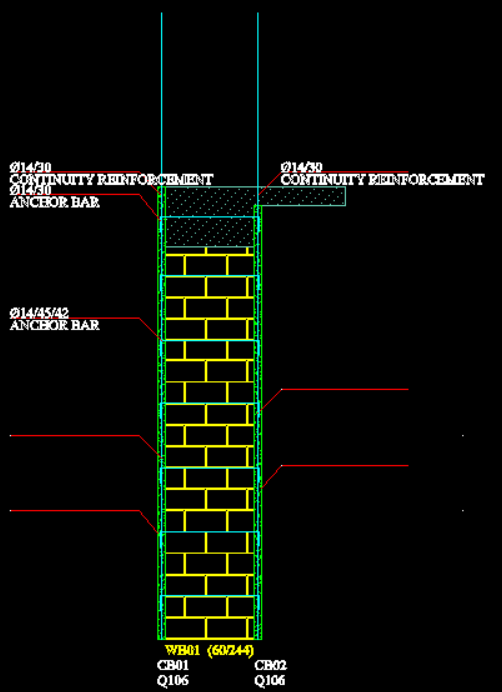

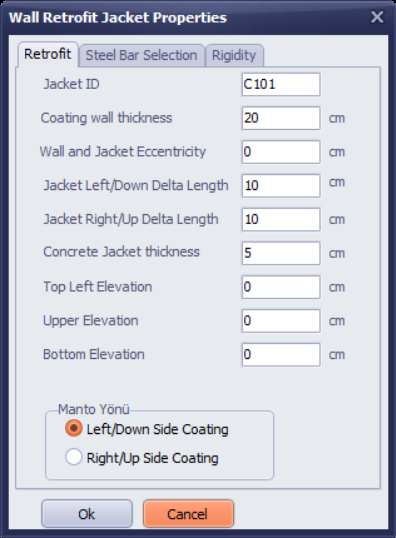

Strengthening Jacket Cross-Section Details

Strengthening Jacket aspect drawings

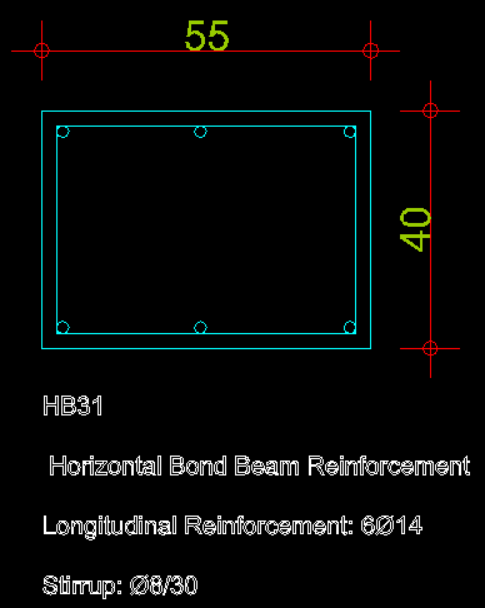

Slab Reinforcement Drawings

Formwork Section Drawings

Exporting drawings to dxf/dwg file formats with layers,colors,lineweights,hatches
